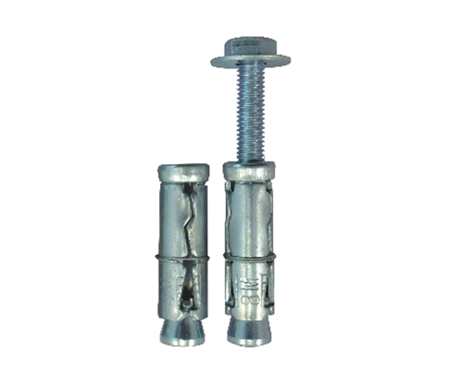

Product name: THREE SHIELD ANCHOR(3 PCS)
Hits: 6630 Category: THREE SHIELD ANCHOR Model:
Product details
THREE SHIELD ANCHOR(3 PCS) (PLATING THICKENSS 3-5um)
CODE NO | SIZE | THREAD | DIAMETER ANCHO Фmm | ANCHOR LENGTH mm | SETTING DEPTH MINI (mm) | ANCHOR WEIGHT KGS/10000PCS | PACKINGBOX/CTN | PULL OUT LOAD(KGS) |
| TWOS-06 | M6x45 | M6 | 12 | 45 | 45 | 15.0 | 100/2000 | 1000 |
| TWOS-08 | M8x50 | M8 | 14 | 50 | 50 | 26.0 | 50/1000 | 1200 |
| TWOS-10 | M10x60 | M10 | 16 | 60 | 60 | 37.0 | 50/500 | 1600 |
| TWOS-12 | M12X75 | M12 | 20 | 70 | 75 | 65.0 | 25/250 | 2500 |
| TWOS-16 | M16X100 | M16 | 24 | 100 | 100 | 137.0 | 25/200 | 3200 |
