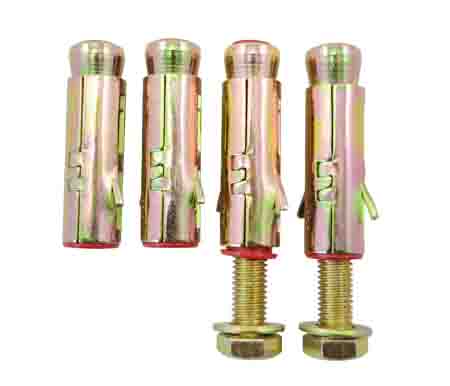

Product name: TWO SHIELD ANCHOR （2 PCS）
Hits: 2101 Category: TWO SHIELD ANCHOR Model:
Product details
INSTALLATION OF PULL OUT LOAD
1. By using automatic stamping making a perfect diameter vith hig retainging power.
2. Usually assemble with bex bolt,eye bolt or hook bolt.
3. High duty application.
TWO SHIELD ANCHOR （2 PCS） （PLATING THICKENSS 3-5 um）
Code N0. | SIZE | THREAD | DIAMETER ANCHOR Фmm | ANCHOR LENTTH mm | SETTING DEPTH MIN(mm) | ANCHOR WEIGHT KGS/1000PCS | PACKING BOX/CTN | PULL OUT LOAD(kgs) |
| TWOS-06 | M6×45 | M6 | 12 | 45 | 45 | 16.4 | 100/2000 | 1000 |
| TWOS-08 | M8×50 | M8 | 14 | 50 | 50 | 24.5 | 50/1000 | 1200 |
| TWOS-10 | M10×60 | M10 | 16 | 60 | 60 | 34.5 | 50/500 | 1600 |
| TWOS-12 | M12×70 | M12 | 20 | 70 | 70 | 65.0 | 25/250 | 2500 |
| TWOS-16 | M16×100 | M16 | 24 | 100 | 100 | 120.0 | 25/200 | 3200 |
