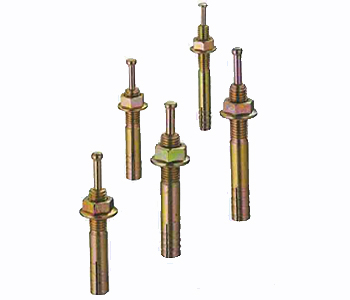

Product name: HIT ANCHOR
Hits: 1571 Category: HIT ANCHOR Model:
Product details
1.NAIL IS MADE OF HIGH TENSILE MATERIAL.NO PRECISE HOLE DEPTH IS REQUIRED AND INSTALLAT旧N CONDITION CAN BE ADJUSTED FROM PIN AND NUT.EASY TO USE AND FAST.
2.MEDIUM AND HIGH DUTY APPLICATION.
CODE NO | SIZE | THREAD | MAX FAST THICKNESS(MM) | ANCHOR LENGTH(MM) | DRILLHOLE(MM) | ANCHOR WEIGHT KGS/1000PCS | PACKING BOX/CTN |
| HA-6-45 | M6×45 | M6 | 15 | 45 | 6.4 | 12 | 2000 |
| HA-6-60 | M6×60 | M6 | 20 | 65 | 6.4 | 15 | 1600 |
| HA-8-50 | M8×50 | M8 | 20 | 50 | 8.5 | 28 | 900 |
| HA-8-70 | M8×70 | M8 | 25 | 70 | 8.5 | 36 | 700 |
| HA-10-50 | M10×50 | M10 | 20 | 50 | 10.5 | 35.5 | 700 |
| HA-10-60 | M10×60 | M10 | 25 | 60 | 10.5 | 40 | 600 |
| HA-10-80 | M10×80 | M10 | 25 | 80 | 10.5 | 49.4 | 500 |
| HA-10-90 | M10×90 | M10 | 30 | 90 | 10.5 | 55 | 450 |
| HA-10-100 | M10×100 | M10 | 30 | 100 | 10.5 | 60 | 400 |
| HA-10-120 | M10×120 | M10 | 30 | 120 | 10.5 | 70 | 350 |
| HA-12-60 | M12×60 | M12 | 20 | 60 | 12.7 | 73 | 350 |
| HA-12-70 | M12×70 | M12 | 25 | 70 | 12.7 | 80 | 300 |
| HA-12-90 | M12×90 | M12 | 30 | 90 | 12.7 | 92 | 300 |
| HA-12-100 | M12×100 | M12 | 40 | 100 | 12.7 | 95 | 250 |
| HA-12-120 | M12×120 | M12 | 50 | 120 | 12.7 | 123 | 200 |
| HA-16-100 | M16×100 | M16 | 40 | 100 | 17 | 182 | 150 |
| HA-16-120 | M16×150 | M16 | 40 | 120 | 17 | 230 | 100 |
| HA-16-150 | M16×150 | M16 | 50 | 150 | 17 | 280 | 90 |
| HA-20-130 | M20×130 | M20 | 50 | 130 | 21.5 | 385 | 70 |
| HA-20-150 | M20×150 | M20 | 50 | 150 | 21.5 | 440 | 60 |
| HA-20-190 | M20×190 | M20 | 50 | 190 | 21.5 | 540 | 50 |
