HEX BOLT DIN-933

Products

Current Position:Home Page > Products > BOLTS AND RODS > HEX BOLT DIN-933

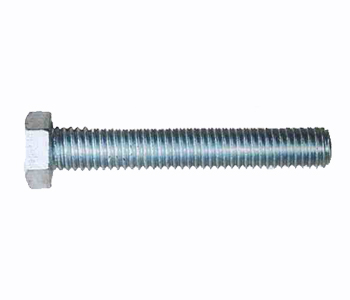

Product name:	HEX BOLT DIN-933
Hits:	3455
Category:	HEX BOLT DIN-933
Model:

Product details

STAINLESS STEEL OR CARBON STEEL IS AVAILABLE.

ANSI/ASME STANDARD AVAILABLE

HEX BOLT ( DIN-933) GRADE 4.6-10.9

CODE NO	SIZE	BOLT WEIGHT KGS /1000PCS	CODE NO	SIZE	BOLT WEIGHT KGS /1000PCS	CODE NO	SIZE	BOLT WEIGHT KGS /1000PCS	CODE NO	SIZE	BOLT WEIGHT KGS /1000PCS
HB933-6-6	M6X6	3.4	HB933-10-14	M10X14	18.2	HB933-14-10	M14X10	33	HB933-20-16	M20X16	105
HB933-6-7	M6X7	3.51	HB933-10-16	M10X16	19.2	HB933-14-12	M14X12	40	HB933-20-18	M20X18	110
HB933-6-8	M6X8	3.74	HB933-10-18	M10X18	20.2	HB933-14-14	M14X14	42	HB933-20-20	M20X20	114
HB933-6-10	M6X10	4.08	HB933-10-20	M10X20	21.2	HB933-14-16	M14X16	44	HB933-20-22	M20X22	118
HB933-6-12	M6X12	4.42	HB933-10-22	M10X22	22.2	HB933-14-18	M14X18	46	HB933-20-25	M20X25	124
HB933-6-14	M6X14	4.76	HB933-10-25	M10X25	23.7	HB933-14-20	M14X20	48	HB933-20-28	M20X28	129
HB933-6-16	M6X16	5.11	HB933-10-28	M10X28	25.2	HB933-14-22	M14X22	50	HB933-20-30	M20X30	134
HB933-6-18	M6X18	5.43	HB933-10-30	M10X30	26.2	HB933-14-25	M14X25	53	HB933-20-35	M20X35	145
HB933-6-20	M6X20	5.8	HB933-10-35	M10X35	28.7	HB933-14-28	M14X28	55.9	HB933-20-40	M20X40	155
HB933-6-22	M6X22	6.13	HB933-10-40	M10X40	31.2	HB933-14-30	M14X30	61.9	HB933-20-45	M20X45	165
HB933-6-25	M6X25	6.65	HB933-10-45	M10X45	33.7	HB933-14-35	M14X35	62.9	HB933-20-50	M20X50	176
HB933-6-28	M6X28	7.15	HB933-10-50	M10X50	36.2	HB933-14-40	M14X40	67	HB933-20-55	M20X55	186
HB933-6-30	M6X30	7.51	HB933-10-55	M10X55	38.7	HB933-14-45	M14X45	72.9	HB933-20-60	M20X60	196
HB933-6-35	M6X35	8.31	HB933-10-60	M10X60	41.3	HB933-14-50	M14X50	77.9	HB933-20-65	M20X65	207
HB933-6-40	M6X40	9.23	HB933-10-65	M10X65	43.8	HB933-14-55	M14X55	82.8	HB933-20-70	M20X70	217
HB933-6-45	M6X45	10.1	HB933-10-70	M10X70	46.3	HB933-14-60	M14X60	87.8	HB933-20-75	M20X75	227
HB933-6-50	M6X50	11	HB933-10-75	M10X75	48.8	HB933-14-65	M14X65	92.8	HB933-20-80	M20X80	238
HB933-6-55	M6X55	11.9	HB933-10-80	M10X80	51.3	HB933-14-70	M14X70	97.9	HB933-20-85	M20X85	247
HB933-6-60	M6X60	12.7	HB933-10-85	M10X85	53.8	HB933-14-75	M14X75	102	HB933-20-90	M20X90	258
HB933-6-65	M6X65	13.6	HB933-10-90	M10X90	56.3	HB933-14-80	M14X80	107	HB933-20-95	M20X95	268
HB933-6-70	M6X70	14.4	HB933-10-95	M10X95	59.8	HB933-14-85	M14X85	112	HB933-20-100	M20X100	279
HB933-6-75	M6X75	15.3	HB933-10-100	M10X100	61.3	HB933-14-90	M14X90	117	HB933-20-110	M20X110	300
HB933-6-80	M6X80	16.2	HB933-10-110	M10X110	66.4	HB933-14-95	M14X95	122	HB933-20-120	M20X120	320
HB933-6-85	M6X85	17.1	HB933-10-120	M10X120	71.4	HB933-14-100	M14X100	127	HB933-20-130	M20X130	340
HB933-6-90	M6X90	18	HB933-10-130	M10X130	76.4	HB933-14-110	M14X110	137	HB933-20-140	M20X140	361
HB933-6-95	M6X95	18.9	HB933-10-140	M10X140	81.4	HB933-14-120	M14X120	147	HB933-20-150	M20X150	381
HB933-6-100	M6X100	19.8	HB933-10-150	M10X150	86.4	HB933-14-130	M14X130	157	HB933-20-160	M20X160	402
HB933-6-110	M6X110	21.6	HB933-10-160	M10X160	91.5	HB933-14-140	M14X140	167	HB933-20-170	M20X170	422
HB933-6-120	M6X120	23.4	HB933-12-10	M12X10	23.3	HB933-14-150	M14X150	177	HB933-20-180	M20X180	442
HB933-8-8	M8X8	8.5	HB933-12-12	M12X12	25	HB933-16-12	M16X12	52.9	HB933-20-190	M20X190	462
HB933-8-10	M8X10	9.1	HB933-12-14	M12X14	26.4	HB933-16-14	M16X14	55.7	HB933-20-200	M20X200	484
HB933-8-12	M8X12	9.8	HB933-12-16	M12X16	27.7	HB933-16-16	M16X16	58.3	HB933-24-16	M24X16	173
HB933-8-14	M8X14	10.5	HB933-12-18	M12X18	29.1	HB933-16-18	M16X18	60.9	HB933-24-18	M24X18	178
HB933-8-16	M8X16	11.1	HB933-12-20	M12X20	31	HB933-16-20	M16X20	63.5	HB933-24-20	M24X20	184
HB933-8-18	M8X18	11.7	HB933-12-22	M12X22	33	HB933-16-22	M16X22	66.2	HB933-24-22	M24X22	190
HB933-8-20	M8X20	12.3	HB933-12-25	M12X25	34.1	HB933-16-25	M16X25	70.2	HB933-24-25	M24X25	199
HB933-8-22	M8X22	12.9	HB933-12-28	M12X28	36.2	HB933-16-28	M16X28	74.2	HB933-24-28	M24X28	200
HB933-8-25	M8X25	13.9	HB933-12-30	M12X30	37.1	HB933-16-30	M16X30	76.9	HB933-24-30	M24X30	214
HB933-8-28	M8X28	14.9	HB933-12-35	M12X35	41.3	HB933-16-35	M16X35	83.5	HB933-24-35	M24X35	229
HB933-8-30	M8X30	15.5	HB933-12-40	M12X40	44.9	HB933-16-40	M16X40	90.2	HB933-24-40	M24X40	244
HB933-8-35	M8X35	17.1	HB933-12-45	M12X45	48.5	HB933-16-45	M16X45	97.1	HB933-24-45	M24X45	259
HB933-8-40	M8X40	18.1	HB933-12-50	M12X50	52	HB933-16-50	M16X50	103	HB933-24-50	M24X50	274
HB933-8-45	M8X45	20.3	HB933-12-55	M12X55	55.6	HB933-16-55	M16X55	110	HB933-24-55	M24X55	289
HB933-8-50	M8X50	21.8	HB933-12-60	M12X60	58.2	HB933-16-60	M16X60	117	HB933-24-60	M24X60	304
HB933-8-55	M8X55	23.4	HB933-12-65	M12X65	62.8	HB933-16-65	M16X65	123	HB933-24-65	M24X65	319
HB933-8-60	M8X60	25	HB933-12-70	M12X70	66.4	HB933-16-70	M16X70	130	HB933-24-70	M24X70	334
HB933-8-65	M8X65	26.6	HB933-12-75	M12X75	70	HB933-16-75	M16X75	137	HB933-24-75	M24X75	348
HB933-8-70	M8X70	28.2	HB933-12-80	M12X80	73.6	HB933-16-80	M16X80	144	HB933-24-80	M24X80	363
HB933-8-75	M8X75	29.8	HB933-12-85	M12X85	77.2	HB933-16-85	M16X85	150	HB933-24-85	M24X85	378
HB933-8-80	M8X80	31.4	HB933-12-90	M12X90	80.8	HB933-16-90	M16X90	157	HB933-24-90	M24X90	393
HB933-8-85	M8X85	33	HB933-12-95	M12X95	84.4	HB933-16-95	M16X95	164	HB933-24-95	M24X95	408
HB933-8-90	M8X90	34.6	HB933-12-100	M12X100	88	HB933-16-100	M16X100	170	HB933-24-100	M24X100	423
HB933-8-95	M8X95	35.2	HB933-12-110	M12X110	95.2	HB933-16-110	M16X110	184	HB933-24-110	M24X110	453
HB933-8-100	M8X100	37.7	HB933-12-120	M12X120	102	HB933-16-120	M16X120	197	HB933-24-120	M24X120	483
HB933-8-110	M8X110	40.9	HB933-12-130	M12X130	109	HB933-16-130	M16X130	210	HB933-24-130	M24X130	513
HB933-8-120	M8X120	44.1	HB933-12-140	M12X140	116	HB933-16-140	M16X140	224	HB933-24-140	M24X140	543
HB933-8-130	M8X130	44.1	HB933-12-150	M12X150	123	HB933-16-150	M16X150	237	HB933-24-150	M24X150	572
HB933-10-8	M10X8	15.2	HB933-12-160	M12X160	130	HB933-16-160	M16X160	250	HB933-24-160	M24X160	602
HB933-10-10	M10X10	16.2	HB933-12-170	M12X170	137	HB933-16-170	M16X170	263	HB933-24-170	M24X170	632
HB933-10-12	M10X12	17.2	HB933-12-180	M12X180	144	HB933-16-180	M16X180	276	HB933-24-180	M24X180	662
