Product name: BUTERFLY ANCHOR
Hits: 2302 Category: BUTERFLY ANCHOR Model:
Product details

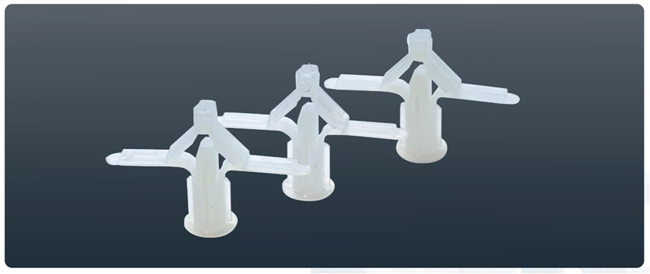

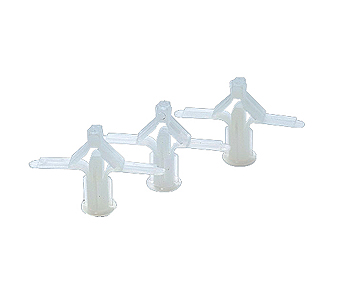

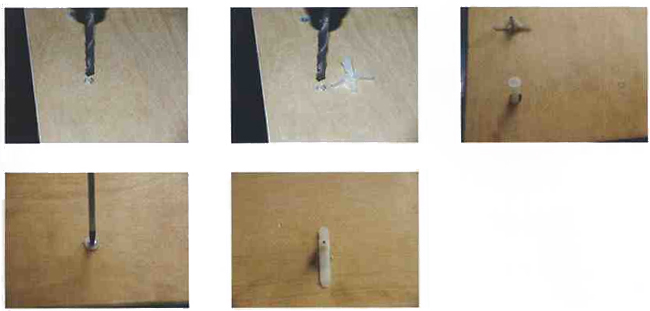

| BUTERFLY ANCHOR |
| MADE BY NYLON PA6 MATERIAL. |
| USE AS DRY WALL, LIGHT DUTY APPLICATION. |
| SIZE AVAILABLE: | |
| 1. SMALL | |
| 2. MEDIUM | |
| 3. LARGE |
| BUTTERFLY ANCHOR |
CODE NO | SIZE | ANCHOR BODY THICKNESS | LUBANG Фmm | SCREW LENGTH mm | SCREW LENGTH NON THREAD mm | DIAMETER SCREW Фmm | BOARD THICKNESS mm |
| BTF S | 10x32 Small | 6.5 | 10 | 35 | 15 | 6-8(4mm) | 3-6. |
| BTF M | 10x38 Medium | 13 | 10 | 45 | 20 | 6-8(4mm) | 5-13. |
| BTF L | 10x50 Large | 16 | 10 | 50 | 25 | 6-8(4mm) | 12-19. |
| PULL OUT LOAD SPECIFICATION |
| ANCHORSIZE | SIZE | PULL OUT LOAD KGS |
| Small | 10X32 | 80 |
| Medium | 10X38 | 80 |
| Large | 10X50 | 80 |
| INSTALLATION OF PULL OUT LOAD |
| 1. 5 pcs Anchor for Testing. 2. Drill a hole. 3. Clean the hole, prepare Anchor. 4. Put Anchor into the hole. 5. By using Screw Driver to make Anchor Expand. 6. Pull the Anchor out from the Board and see the Load. |
| FINAL TEST REPORT OF PULL OUT LOAD |
| ANCHORSIZE | SIZE | WOODEN THICKNESSmm | PULL OUT LOAD KGSRESULT |
| Small | 10X32 | 3-6. | 120 |
| Medium | 10X38 | 5-13. | 120 |
| Large | 10X50 | 12-19. | 120 |
