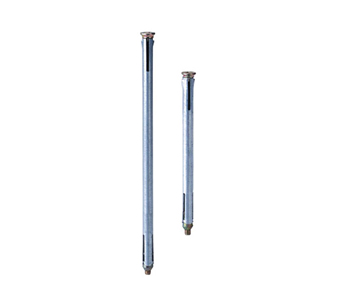

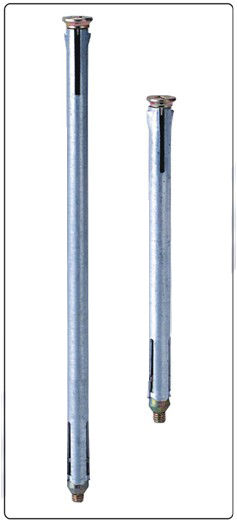

Product name: METAL FRAME ANCHOR
Hits: 2015 Category: METAL FRAME ANCHOR Model:
Product details
 | 1. THERE IS TWO CHOICE AVAILABLE HERE, THE TAPERED EXPANSION NUT IS MADE BY ZINC ALLOY OR CARBON STEEL. 2. SLEEVE FITTING MADE BY COLD ROLL MILD GALVANIZED STEEL ASSEMBLED WITH MACHINE SCREW. 3. FOR INSTALLATION USUAL USE FOR WINDOW FRAME. 4. LIGHT DUTY AND MEDIUM DUTY APPLICATION. |
| METAL FRAME ANCHOR |
CODE NO | SIZE | DIAMETER ANCHOR mm | SLEEVE LENGTH mm | SCREW LENGTH | MIN HOLE DEPTH mm | FIXING LENGTH DEPTH | WEIGHT KGS/1000 | PACKING BOX/CTN |
| MF08072 | 8X72 | 8 | 72 | M5X85 | 50 | 42 | 21 | 100/500 |
| MF08092 | 8X92 | 8 | 92 | M5X105 | 50 | 62 | 26.6 | 100/500 |
| MF08110 | 8X112 | 8 | 112 | M5X125 | 50 | 82 | 31.8 | 100/500 |
| MF08132 | 8X132 | 8 | 132 | M5X145 | 50 | 102 | 35.6 | 100/500 |
| MF10072 | 10X72 | 10 | 72 | M6X85 | 50 | 40 | 33 | 100/500 |
| MF10092 | 10X92 | 10 | 92 | M6X105 | 50 | 60 | 39 | 100/500 |
| MF10112 | 10X112 | 10 | 112 | M6X125 | 50 | 80 | 46 | 100/500 |
| MF10132 | 10X132 | 10 | 132 | M6X145 | 50 | 100 | 53 | 100/500 |
| MF10152 | 10X152 | 10 | 152 | M6X165 | 50 | 140 | 59 | 100/500 |
| MF10182 | 10X182 | 10 | 182 | M6X195 | 50 | 150 | 68 | 100/250 |
| MF10202 | 10X202 | 10 | 202 | M6X215 | 50 | 170 | 78 | 100/250 |
