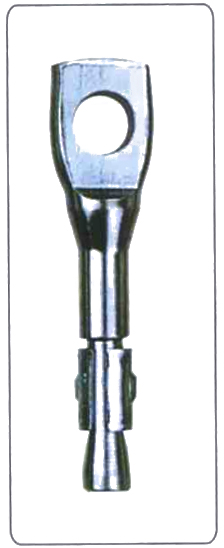

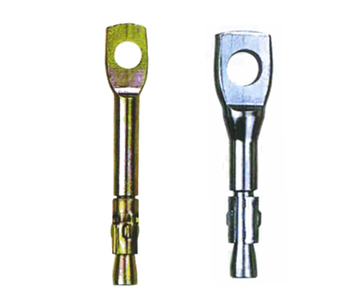

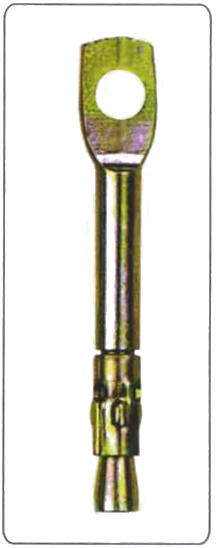

TIE WIRE ANCHOR
  • Product name:

    TIE WIRE ANCHOR
    Hits: 2271
    Category: TIE WIRE ANCHOR
    Model:
Product details

1. EASY AND QUICK INSTALATION, SET BU PULLING BACK WITH CLAW HAMMER.

2. STRONG HOLDING POWER SPECIFICIALLY DESIGNED TO PROTECT ANCHOR FROM
POINT IN CONCRETE CEILING OR GROUND.

3. LIGHT DUTY APPLICATION, SUITABLE FOR SUSPENDED CEILING AND LIGHT WEIGHT EXPANSION.
















CODE

NO

SIZE

DIAMETER

ANCHOR

mm

DIAMETER

HOLE

mm

MIN HOLE

DEPTH

mm

ANCHOR

WEIGHTLOAD

250Kg/cm

TW6-60M6X60L66.335550Kgs(1400Ibs)
STAINLESS STEEL IS AVAILABLE



CODE

NO　

SIZE

DIAMETER

ANCHO

Rmm

DIAMETER

HOLE

mm

MIN HOLE

DEPTH

mm

ANCHOR

WEIGHT

LOAD 250Kg/cm

TW14-2.141/4X2-1/46.27.235790Kgs(2000Ibs)
TW14-2.181/4X2-1/86.57.4351150Kgs(2700Ibs)


PULL OUT LOAD SPECIFICATION


SIZE mm

MATERIAL

SIZE Ф mm

TORGUE

WRENCH Nm

TENSILE

STRENGTH

σь (Mpa)

SHEA

RSTRENGTH

τb (Mpa)

PULL OUT LOAD

KGS　

M6X60L4.326586375680
1/4X2-1/45.1312592580680
1/4X2-1/86.9125590378680


INSTALLATION OF PULL OUT LOAD


1. 5 pcs Anchor for Testing.
2. Drill a hole.
3. Measure hole depth.
4. Clean the hole, prepare Anchor.
5. Put the Anchor in the hole by Hammering.
6. Installed Pull out Load Machine.
7. Start to Pull out the Anchor.
8. See the Pull out Load Strength when the concrete is Broken.
9. The concrete will Broken when the Anchor is Pull out.





FINAL TEST REPORT OF PULL OUT LOAD


SIZE mm　

MATERIAL                   SIZE Ф mm

PULL OUT LOAD                   KGS RESULT

M64.321100
1/4"X2-1/45.131150
1/4"x2-1/86.851200
