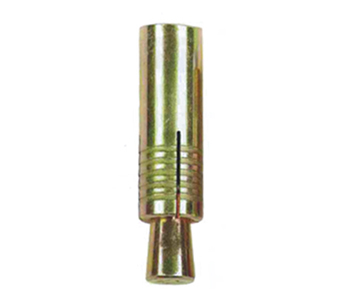

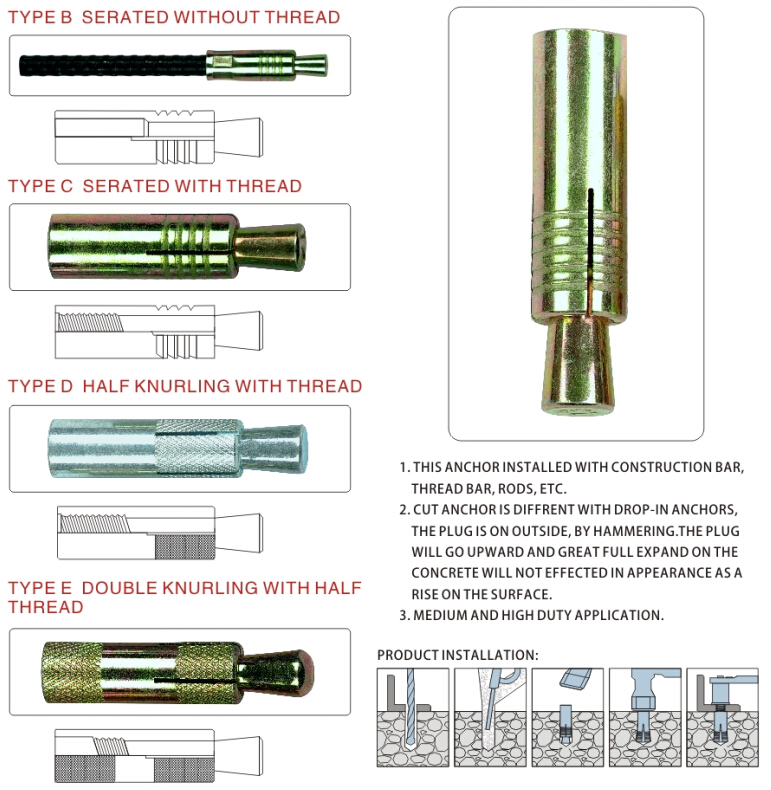

Product name: CUT ANCHOR
Hits: 1622 Category: CUT ANCHOR Model:
Product details
| CUT ANCHOR ( PLATING THICKNESS 3-5 um ) |
CODE NO | SIZE | THREAD | DIAMETER ANCHOR Ф mm | ANCHOR LENGTH mm | THREAD LENGTH mm | DIAMETER HOLE Фmm | MINIMAL EMBEDMENT mm | PACKING BOX/CTN |
| CAM-10 | M10x40 | M10 | 12 | 40 | 14 | 12 | 40 | 100/500 |
| (CAM-20) | W3/8x40 | W3/8 | 14 | 14 | 40 | 100/500 | ||
| CAM-12 | M12x50 | M12 | 16 | 52 | 24 | 16 | 50 | 50/250 |
| (CAM-20) | W1/2x52 | W1/2 | 17.5 | 17.5 | 52 | 50/250 |
| STAINLESS STEEL AND SPECIAL LENGTH AVAILABLE |
| PULL OUT LOAD SPECIFICATION |
SIZE mm | MATERIA LSIZE Ф mm | TORGUE WRENCH Nm | TENSILE STRENGTH σь (Mpa) | SHEAR STRENGTH τb (Mpa) | SAFETY PULL OUT LOAD KGS |
| M10(3/8) | 13.4 | 35 | 591 | 379 | 1400 |
| M12(1/2) | 16.9 | 55 | 578 | 362 | 2000 |

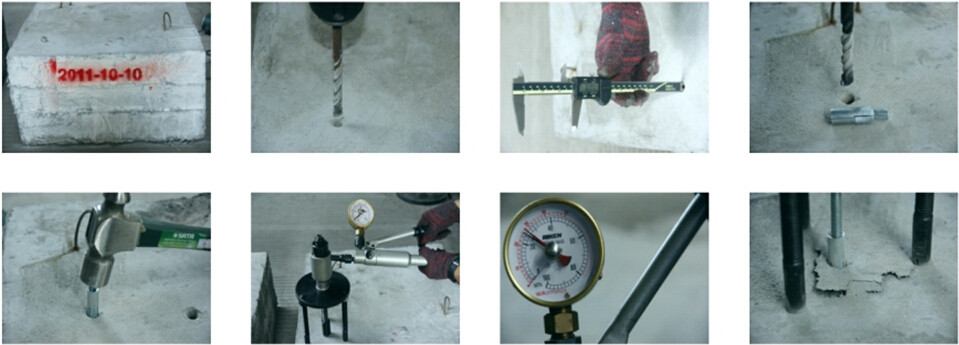

| INSTALLATION OF PULL OUT LOAD |

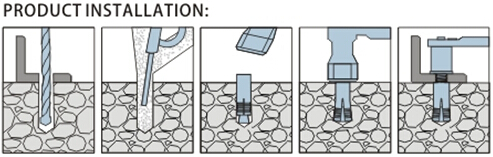

| 1. 5 pcs Anchor for Testing. 2. Drill a hole. 3. Measure hole depth. 4. Clean the hole, prepare Anchor. . 5. Put the Anchor in the hole by Hammering. 6. Using Torque Wrench to fast the Anchor ( Nm ). 7. Installed Pull out Load Machine. 8. Start to Pull out the Anchor. 9. See the Pull out Load Strength when the concrete is Broken. 10.The concrete will Broken when the Anchor is Pull out. |
|
| ||||||||||||
